Brook Wingman XE Converter Xbox to PS4 and PC Adapter
Original price was: £38.99.£34.99Current price is: £34.99.
The Brook Wingman XE Converter allows you to use an Xbox One, Xbox 360, Elite Series 1 or Elite V2 Controller on PS4 or PC.
Out of stock
The Brook Wingman XE Converter allows you to use an Xbox One, Xbox 360, Elite Series 1 or Elite V2 Controller on PS4 or PC.
If you love PS4, but cannot bare to lose your Xbox Controller, this is the product for you! Setup is effortless so you will be in the game in no time!
Compatibility
Compatible with Xbox 360 / Xbox One / Xbox Elite (Bluetooth model) / Xbox Elite Series 2 controller and arcade stick
Compatible with PS4 consoles / PC (Direct-input)
Features
- Wired or Wireless
- Hot swapping.
- Auto-register controllers.
- Optimal button mapping.
- Touch Pad Simulation Function.
- Supports Turbo function.
- Light weight and USB-sized.
*This does not work in reverse PS4 to Xbox, please checkout out our other Brook Adapters if you require this function.

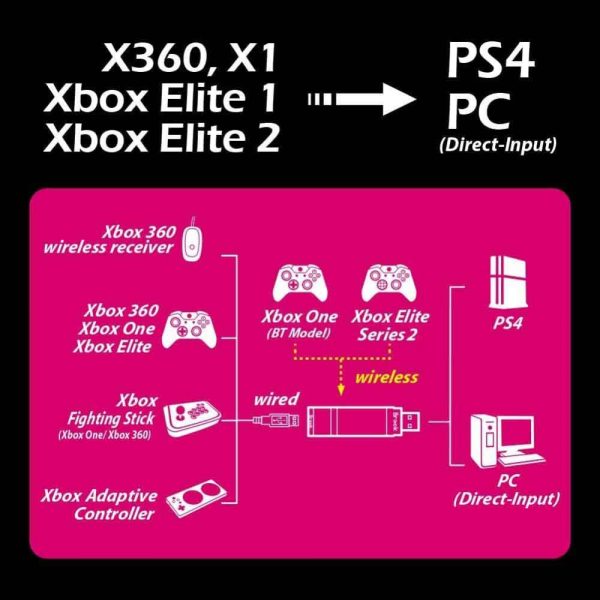

Connecting to the Device
Insert Wingman XE into the PS4 console USB port. Slow blinking of the Blue LED indicates that the connection to the console is successful.
Wired Connection:
Connect the X360/X1 wired controller or game pad to Wingman XE through the USB port.
Using a X360 wireless controller:
Simply connect the X360 wireless receiver to the Wingman XE through the USB port.
Wireless Connection:
Connect the Xbox One wireless controller (Bluetooth model) or the Xbox One Elite Series 2 to the Wingman XE and the controller will be ready for use. When connecting, hold the LED buttons at the two sides of the Wingman XE for 1 second to enter wireless connection mode. Then press the Pair button on the wireless controller to begin pairing. Fast blinking of Blue LED indicates that pairing is in progress.
Check whether the two Blue LEDs at the sides of the Wingman XE are permanently on. This indicates that the connection is completed.
Connection Pairing Supplementary Instructions
Holding the LED buttons on the two sides of the Wingman XE for 1 second will activate wireless connection pairing mode. The Wingman XE will engage in pairing with surrounding Bluetooth devices. The pairing mode will end if:
The connection pairing with the wireless controller is successful.
The connection pairing is unsuccessful after 1 minute.
The LED buttons are held for 1 second.
Wireless connection records between an Xbox One wireless controller (with Bluetooth function)/Xbox One Series 2 and the Wingman XE will be erased if a wired connection is used. Wireless connection re-pairing will be required if wireless connection is used.
If Xbox One Elite Series 2 controller is used, please turn off controller profile settings to prevent interference with Wingman XE’s Turbo or Remap settings. As Xbox One Elite Series 1 controller is incapable of turning off profile settings, using Xbox One Elite Series 1 controller might result in Remap function overlapping.
Turbo and Remap Settings
Turbo Function Settings
The following instructions are based on the Xbox One controller. For those using an Xbox 360 controller, please refer to the Corresponding Buttons List for PS4, Xbox360 and XboxOne Game Pads
Turbo Function Settings
Buttons that can be set as Turbo function buttons include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB 10 (hereinafter referred to as FK)
Step 1.Enter setting mode:
Press VIEW + Xbox Guide, the RED LED of the Wingman XE will be permanently on.
Step 2.Choosing a FK button: (e.g. Setting A as turbo function)
Hold VIEW, then press A
Step 3.Completing Setting Mode:
Release all buttons, then press MENU to save settings.
Step 4.Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE will be permanently on.
Cancelling Turbo Function
Step 1.Enter setting mode:
Press VIEW + Xbox Guide, the RED LED of the Wingman XE will be permanently on.
Step 2.Erasing all Turbo function buttons
Press VIEW + MENU
Step 3.Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE will be permanently on.
Button Remap Settings
The following instructions are based on the Xbox One controller. For those using an Xbox 360 controller, please refer to the Corresponding Buttons List for PS4, Xbox360 and Xbox One Game Pads
Button Remap Settings
Buttons that can be remap include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB 10 (hereinafter referred to as FK)
Step 1.Enter setting mode:
Press MENU + Xbox Guide, the RED LED of the Wingman XE will be permanently on.
Step 2.Choosing a FK button: (e.g. Setting X as A+B)
Press X
Step 3.Choosing button to be set:
Hold VIEW, then press A + B.
Step 4.Completing setting mode:
Release all buttons, then press MENU to save settings.
Step 5.Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE will be permanently on.
Cancelling Button Remap Settings
Step 1.Enter setting mode:
Press MENU + Xbox Guide, the RED LED of the Wingman XE will be permanently on.
Step 2.Erasing all settings for Button Remap Settings
Press VIEW + MENU.
Step 3.Exit setting mode:
Press Xbox Guide, the BLUE LED of the Wingman XE will be permanently on.
Compatibility
List correct as of 7th of Nov 2021, please visit the Brook Website for the most up to date list.
ACTIVISION Canberra
ACTIVISION GUTAR HERO
ACTIVISION DJ HERO
Akishop AKISHOP PS360+
BD&A POWER A FUSION Pro Controller for Xbox One
DOBE DOBE X ONE Wired Controller
HARMONIX Rickenbacker 325
HIT BOX XBOX ONE Hit Box Arcade hitbox
HORI Xbox 360 Real Arcade Pro.EX SA
HORI Xbox 360 Real Arcade Pro.VX SA
HORI Hori Fighting Edge 刃 for Xbox 360
HORI Blazblue stick
HORI PRO. V Hayabusa_[XBO-004]
HORI HORIPAD for Xbox One [XBO-001]
KDIT KKS-1302554
KDIT 2013 KKS-1302289
KONAMI Dance dance revolution
Mad Catz Mad Catz Ultra Street Fighter® IV Arcade FightStick™ Tournament Edition 2 for Xbox 360
Mad Catz Arcade FightStick Tournament Edition 2
Mad Catz Arcade FightStick PRO for Xbox 360
Mad Catz Xbox 360 Street Fighter IV FightPad
MayFlash Fight Stick – PS3/Xbox 360/PC – Arcade Fighting Stick V2
MayFlash MayFlash F300
Microsoft xbox adaptive controller
Microsoft XBOX360 Wireless Controller with Wireless Receiver
Microsoft XBOX360 Wired Controller
Microsoft Xbox One S Wireless Controller
Microsoft XBOX ONE Elite
Microsoft XBOX ONE Elite Series 2
Microsoft XBOX ONE Controller
Microsoft XBOX ONE Controller with 3.5mm jack
Microsoft XBOX360 Wireless Receiver
PDP ROCK CANDY for XBOX One
PDP Xbox One Mirror’s Edge Catalyst Wired Controller
PDP PDP Wired Controller for Xbox One & PC – Camo
PDP Afterglow Wired Controlle
POWER A POWER A FUSION CONTROLLER FOR XBOX ONE
POWER A CONTROLLER FOR XBOX ONE
1240364-01
POWER A PowerA Wired Controller for Xbox One
1503455-01
POWER A POWER A Spectra Illuminated Controller
POWER A PowerA Fusion Pro Wired Controller for Xbox One
PowerA PowerA Mini Controller for xbox one
PowerA PowerA Enhanced Wired Controller for Xbox One
QANBA QANBA Q4 3 in 1 Arcade Stick
QANBA Qanba Q1 Xbox 360 and PC Arcade Stick
RAZER Razer Atrox
Razer Razer Wildcat- Gaming Controller for Xbox One
RAZER razer wolverine ultimate
RAZER razer wolverine tournament edition
SCUF PROFESSIONAL CONTROLLER
FOR XBOX 360
X1/X360 Mortal Kombat X Fight Pad for Xbox One and Xbox 360
Notice
*Each Wingman XE can only connect to a single Xbox 360 / Xbox One device. Wingman XE supports most of the accessories that are compatible with original factory specifications. To expand the number of supported accessories, firmware will be updated irregularly.
*Wingman XE does not support headset/microphone function provided by controller audio jack.
