With the Brook Wingman XB Converter you can use PS3, PS4, Xbox One, Xbox 360 Xbox Series S / X & Switch Pro controllers on Xbox One, Series S / X and Xbox 360 consoles.

Installation is simple & effortless, wired or wireless you’ll be in the game in no time. Using a PlayStation or Switch Controller on an Xbox Console has never been easier!

Connect a wired Xbox 360 / Xbox One / PS3 / PS4 / Switch Pro controller to use. Also supports relevant Xbox 360 / Xbox One / PS3 / PS4 / Switch wireless controller accessories.

The Brook Wingman XB converter will not work on PS3, PS4 or Nintendo Switch console, if you require this function please check out the other Brook Adapters.

Connecting to the Device

Insert the Brook Wingman XB converter into the Xbox 360 / Xbox One / Xbox Series X console USB port. Slow blinking of the Blue LED indicates that the connection to the console is successful.

Wired Connection:

Connect the Xbox 360 / Xbox One/ PS3 / PS4 / Switch Pro wired controller or game pad to the Brook Wingman XB converter through the USB port.

Using a X360 wireless controller:

Simply connect the wireless X360 wireless receiver to the Wingman XB adapter through the USB port.

Using Xbox One wireless controller / Xbox One Elite Series 2 controller:

Connect the Xbox One wireless controller (Bluetooth model) or the Xbox One Elite Series 2 to the Brook Wingman XB converter and the controller will be ready for use. When connecting, hold the LED buttons at the two sides of the Wingman XB adapter for 1 second to enter wireless connection mode. Then press the Pair button on the wireless controller to begin pairing. Fast blinking of Blue LED indicates that pairing is in progress.

Using PS3 / PS4 / Switch Pro wireless controller:

After completing the connection according to the instructions of the Wired Connection, remove the USB cable, and then wake up the PS3 / PS4 / Switch Pro wireless controller.

Check whether the two Blue LEDs at the sides of the Wingman XB are permanently on. This indicates that the connection is completed.

Connection Pairing Supplementary Instructions

1. Holding the LED buttons on the two sides of the Wingman XB for 1 second will activate wireless connection pairing mode. The Wingman XB will engage in pairing with surrounding Bluetooth devices. The pairing mode will end if:

• The connection pairing with the wireless controller is successful.
• The connection pairing is unsuccessful after 1 minute.
• The LED buttons are held for 1 second.

2. Wireless connection records between an Xbox One wireless controller (with Bluetooth function)/Xbox One Series 2 and the Wingman XB will be erased if a wired connection is used. Wireless connection re-pairing will be required if wireless connection is used.

3. If Xbox One Elite Series 2 controller is used, please turn off controller profile settings to prevent interference with Wingman XB’s Turbo or Remap settings. As Xbox One Elite Series 1 controller is incapable of turning off profile settings, using Xbox One Elite Series 1 controller might result in Remap function overlapping.

Turbo Function

The following instructions are based on the Xbox One controller. For those using an Xbox 360 controller, please refer to the Corresponding Buttons List

Turbo Function Settings

Buttons that can be set as Turbo function buttons include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB 10 (hereinafter referred to as FK)

Step 1.Enter setting mode:

Press VIEW + Xbox Guide, the RED LED of the Wingman XB will be permanently on.

Step 2.Choosing a FK button: (e.g. Setting A as turbo function)

Hold VIEW, then press A

Step 3.Completing Setting Mode:

Release all buttons, then press MENU to save settings.

Step 4.Exit setting mode:

Press Xbox Guide, the BLUE LED of the Wingman XB will be permanently on.

Cancelling Turbo Function

Step 1.Enter setting mode:

Press VIEW + Xbox Guide, the RED LED of the Wingman XB will be permanently on.

Step 2.Erasing all Turbo function buttons

Press VIEW + MENU

Step 3.Exit setting mode:

Press Xbox Guide, the BLUE LED of the Wingman XB will be permanently on.

Button Remap

The following instructions are based on the Xbox One controller. For those using an Xbox 360 controller, please refer to the Corresponding Buttons List

Button Remap Settings

Buttons that can be remap include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB 10 (hereinafter referred to as FK)

Step 1.Enter setting mode:

Press MENU + Xbox Guide, the RED LED of the Wingman XB will be permanently on.

Step 2.Choosing a FK button: (e.g. Setting X as A+B)

Press X

Step 3.Choosing button to be set:

Hold VIEW, then press A + B.

Step 4.Completing setting mode:

Release all buttons, then press MENU to save settings.

Step 5.Exit setting mode:

Press Xbox Guide, the BLUE LED of the Wingman XB will be permanently on.

Cancelling Button Remap Settings

Step 1.Enter setting mode:

Press MENU + Xbox Guide, the RED LED of the Wingman XB will be permanently on.

Step 2.Erasing all settings for Button Remap Settings

Press VIEW + MENU.

Step 3.Exit setting mode:

Press Xbox Guide, the BLUE LED of the Wingman XB will be permanently on.

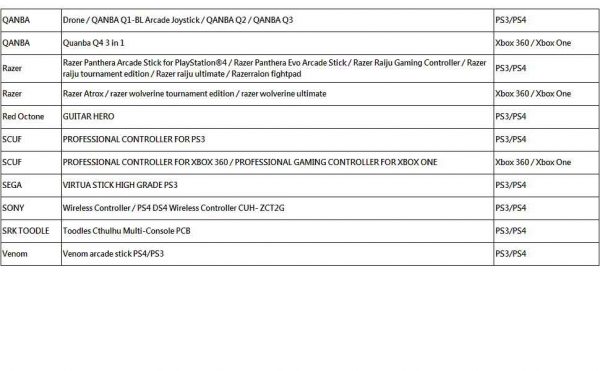

Compatibility

This list was correct on the 7th of Nov 2020, please visit the Brook website for the most up to date list.

Notice

*Each Brook Wingman XB converter can only connect to a single device. Wingman XB supports most of the accessories that are compatible with original factory specifications. To expand the number of supported accessories, firmware will be updated irregularly.

*Brook Wingman XB does not support headset/microphone function provided by the controller audio jack.
